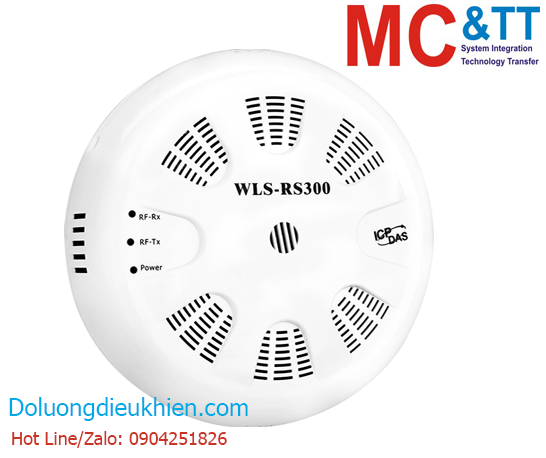

Thiết bị thu phát không dây xác định vị trí cục bộ + đo nhiệt ẩm ICP DAS WLS-RS300 CR

Thương hiệu: ICP DAS | Tình trạng: Còn hàng
Liên hệ

Ceiling Mounting Type Wireless Locating System Receiver with Alarm, Relay and T&H Sensor

Gọi +84 904251826 để được trợ giúp

Thiết bị thu phát không dây xác định vị trí cục bộ + đo nhiệt ẩm ICP DAS WLS-RS300 CR

Features

  • Supports data conversion from ISM 2.4GHz frequency to 400MHz frequency
  • Supports 16 segments of RF channels with 2.4GHz and 400MHz
  • Built in 2.4GHz 3dBi PCB directional antenna
  • Supports external DIP and rotary switches for easy configuration
  • Built in a buzzer and supports remote enabling buzz function
  • Relay Output for Alarm Device

Introduction

WLS-RS300 is a 2.4GHz wireless receiver, it is mainly installed in fixed position to receive the 2.4GHz wireless location data of WLS-T01, WLS-T02 and WLS-T11 broadcast. In the other hand, WLS-RS300 is also a wireless converter (called Router) from 2.4GHz to 400MHz. it can effectively use 400MHz high transmittance characteristics to extend the wireless transmission distance, and don’t need add wire between the communication paths. The WLS software in the PC can use transparent function of RFU-400 to poll the wireless location data of WLS-RS300, and then calculate the relative position by the algorithm. The user can simply use the DIP switch and rotation switch to configure the parameter, and don’t need to add wire between the communication paths. It very suitable for use in item tracking, personnel movements, factory regional management and other applications.

Specification

Alarm and Event
Alarm Triggers Min. 85dBA(Typical 92)@10cm



LED Indicators
Status 1 x Power
1 x 400MHz Transmitted status
1 x 2.4GHz Received status



Temperature Measurement
Range 0°C ~ +50°C
Resolution 0.1°C
Accuracy ±0.6°C



Humidity Measurement
Accuracy 0 ~100% RH
Range 0.1% RH
Resolution ±5% RH



RF
Antenna 2.4GHz:2.4GHz - 3dBi PCB directional antenna
400MHz:429MHz – 5dBi PCB directional antenna
Channels 16
Frequency Band 2.4GHz: 2.4GHz
400MHz: Channel 0~9- 429.8125 MHz to 429.9250 MHz;
Channel A~F- 429.1750 MHz to 429.2375 MHz
Modulation 2.4GHz:OQPSK (Offset Quadrature Phase-shift Keying)
Spread Spectrum 2.4GHz:DSSS (Direct-Sequence Spread Spectrum)
Transmission Power 2.4GHz:16±1dBm (Default) / 17dBm (Max.)
400MHz:19dBm (Default / Max.)
No. of Nodes 2.4GHz:90 (Max., Tag Tx interval is 3 seconds)
Transmission Distance (LoS) 2.4GHz:100m (Default)
400MHz:160m(Default)



Relay Output
Channels 1 (SPDT, Form C)



Power
Input Range 100 VAC ~ 240VAC
Consumption 5 W Max.



Mechanical
Dimensions (mm) Ø150 x 53 (Ø x H)
Installation Ceiling /surface mounted



Environmental
Operating Temperature 0°C ~ +50°C
Storage Temperature -30°C ~ +75°C
Humidity 10 ~ 90% RH(Non-condensing)

Download

Data Sheet

Documents

Ordering information

WLS-RS300 CR  Ceiling Mounting Type Wireless Locating System Receiver with Alarm, Relay and T&H Sensor (Asia Only) (RoHS)
